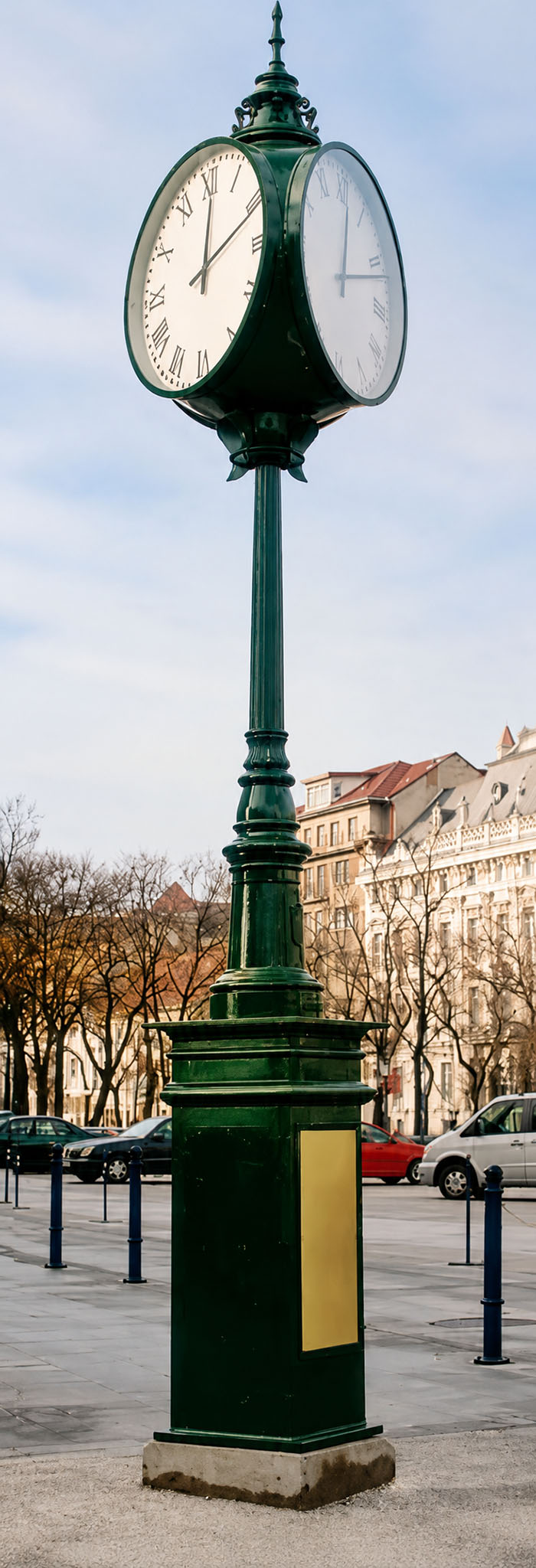

Post clock type Three-sided

Pedestal

• Material: welded steel plates 20 mm thick with outlet
• protruding profiles, welded steel strip, finished edges

Cast iron column

• Material: gray cast iron
• Height: 2800 mm
• Largest width (ring): 390 mm

Transition between cast iron column and clock

• milled aluminum spacer with dimensions 600x100 mm

Clock

• Material: steel profiles with reinforcements
• Size: 1100 mm
• Clock glass: 5 mm thick tempered safety glass

Terminating element

• milled aluminum piece measuring 600x700 mm

Composition of MOBATIME watches

• Clockwork SAM140
• Movement dimensions: 38.5x95x132 mm
• Battery backup power supply
• Atypical dial plate made of shatterproof white acrylic
• Three-tube lighting

Surface treatment

• Komaxit powder paint, anti-corrosion paint JV02, or individual solution according to customer requirements
• Period, stylish and modern color combinations
• Possibility of your own RAL shade
• Zinc surface treatment option

Product description

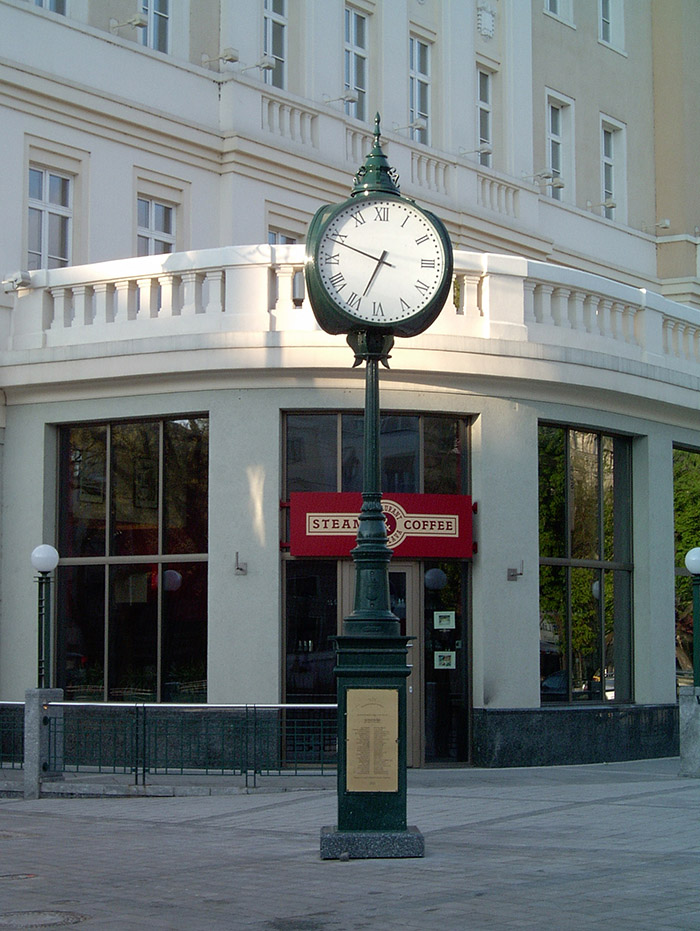

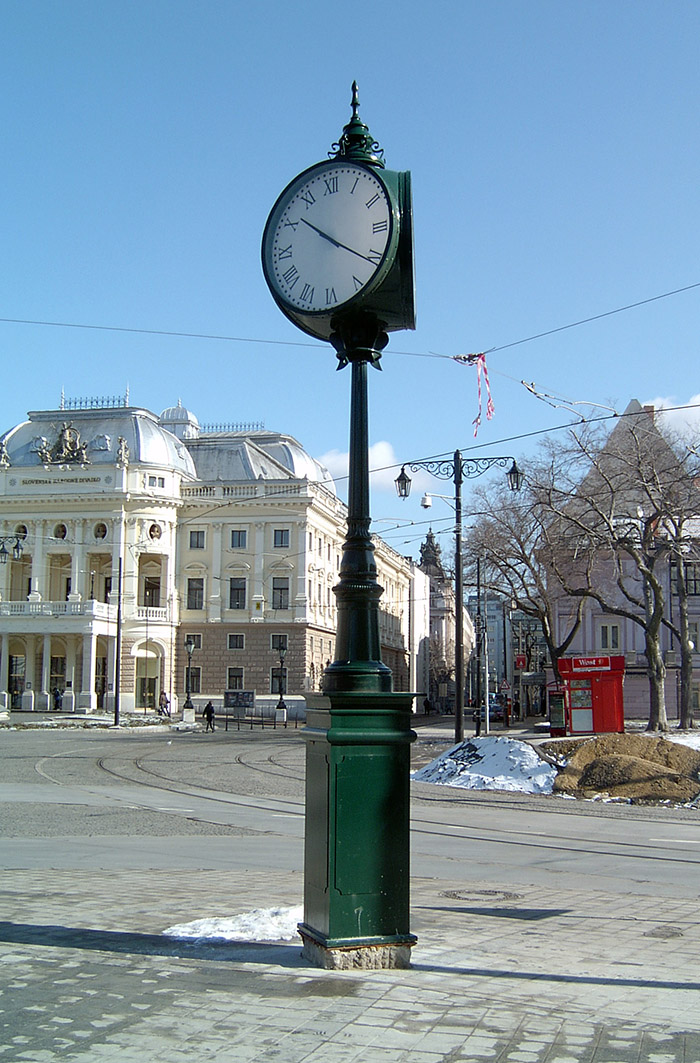

Mast clocks are a suitable solution for public spaces where practical function should be combined with quality workmanship, good visibility and a representative appearance.
